|Model No.||MIG160E||Gasless flux core wire diameter||0.8-1.0|
|Input voltage(v)||AC220||Rated output voltage(v)||15.5-22|
|Rated frequency(KHz)||25||Duty cycle(%)||35|
|Rated input power (KVA)||5.9||No-load loss||20|
|No load voltage(v)||55||efficency(%)||85|
|MIG real output current (A)||30-170||Gasless flux core wire diameter(mm)||0.8-1.0|
|MMA real output current(A)||30-150||Max electrode rod(mm)||3.2|
|Lift TIG real output current(A)||30-150||solid wire diameter(mm)||0.6-0.8|
|Power factor(%)||73||Insulation class||F|
|Machine size||345*145*250||Protect class||IP21|
|packing dimension||450*280*330||net weight(Kg)||8.8|
|Transport Package||Plate Carton Packing||Trademark||Tribet, OEM|
|" quality first , customer first and credit -- based "|
MIG160,the new product are stronger output power than the old ,but the size and price as same as before.
The machine with three functions ,MMA MIG lift TIG,but it was very economical.
Small size and light weight ,portable to carry about.
The welding machine is a invert welder ,with the IGBT technology,make sure the welding function more powerful .
High ability against mains function wide application range .
Multiple protected design make sure the weling machine is more reliable.
Our Business goals :superior quality ,customer satisfaction.
Shenzhen Tribet Technology Co.,Ltd offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.

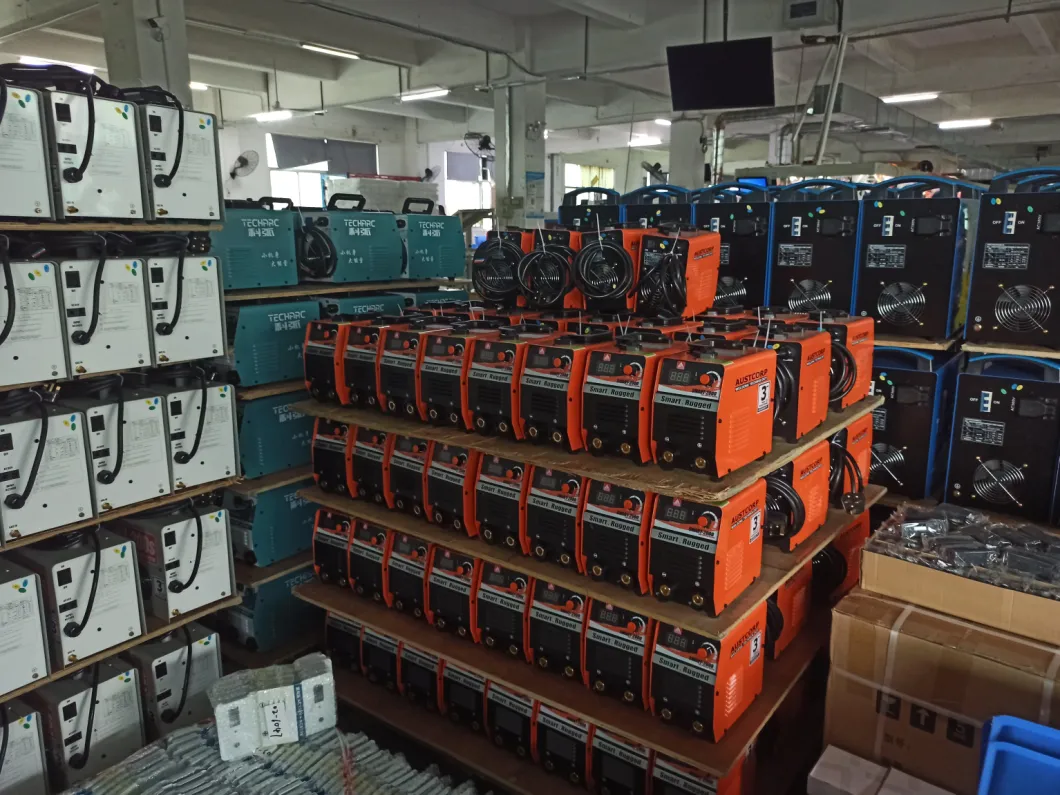

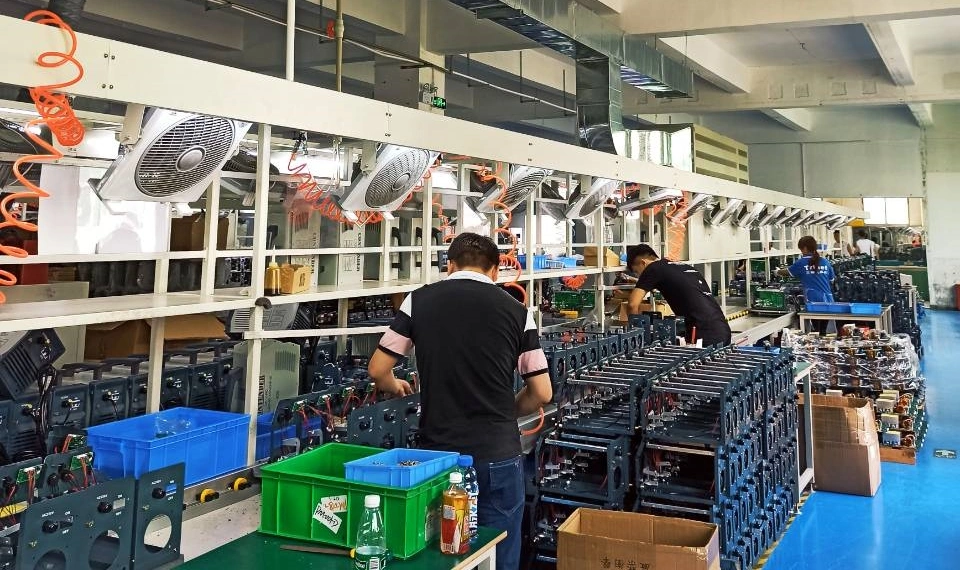

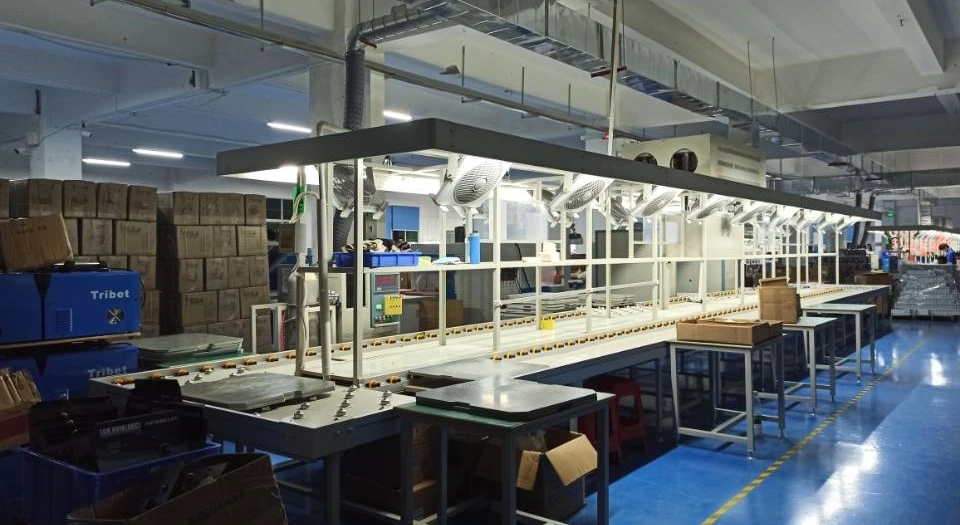

Advanced production equipment and production line
numerous product variety :MIG ARC TIG CUT ,etc.
Strict inspectionFAQ1. Q: Are you a factory or trading company?
A: We're a factories . Tribet is the professional manufacturer of producing welding machines and plasma cutter. If you need other items like Air compressor, we will introduce the professional salesman to you.
2. How many employees in your company?
A: Totally nearly 300 staff in our group company. There is 60 staff working in TRIBET factory.
3. Q: Where is your factory located ? How can I get there ?
A: Our factory is located Shenzhen City of Guangdong Province, which is very near Guangzhou.You can reach us very
4. Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.
5. Q: What's your delivery time ?
A: Usually, it will take 35 days after we confirming the sales contract and details.
6. Q: What kind of payment terms do you accept ?
A: T/T or L/C at sight. Contact us if you need more details on Welder. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Invert Welder、ARC welding machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
